RISCVISel Class Reference

#include <emitter/riscv/riscvisel.h>

Inheritance diagram for RISCVISel:

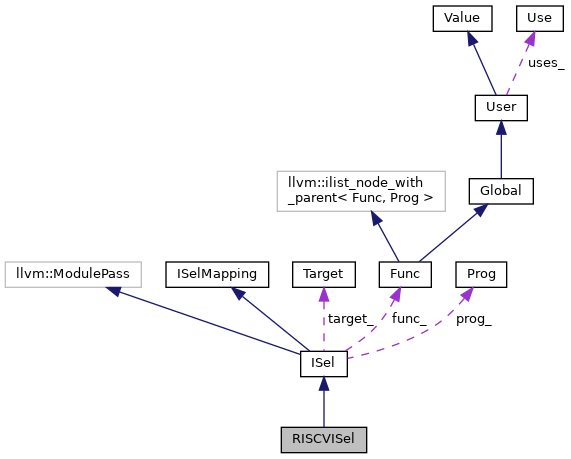

Collaboration diagram for RISCVISel:

Public Member Functions
	RISCVISel (const Target &target, llvm::RISCVTargetMachine &tm, llvm::TargetLibraryInfo &libInfo, const Prog &prog, llvm::CodeGenOpt::Level ol, bool shared)
Public Member Functions inherited from ISelMapping
llvm::MachineFunction *	operator[] (const Func *func) const
	Finds the MachineFunction attached to a function.
llvm::MCSymbol *	operator[] (const Inst *inst) const
	Finds the label attached to an instruction.
llvm::MachineBasicBlock *	operator[] (const Block *block) const
	Finds the MachineBasicBlock attached to a block.
const CamlFrame *	operator[] (llvm::MCSymbol *symbol) const
	Finds the frame attached to a symbol.

Static Public Attributes
static char	ID

Additional Inherited Members
Protected Types inherited from ISel
using	MVT = llvm::MVT
using	EVT = llvm::EVT
using	SDNode = llvm::SDNode
using	SDValue = llvm::SDValue
using	SDVTList = llvm::SDVTList
using	SelectionDAG = llvm::SelectionDAG
using	GlobalValue = llvm::GlobalValue
using	RegParts = llvm::SmallVector< std::pair< llvm::Register, llvm::MVT >, 2 >
using	ExportList = std::vector< std::pair< RegParts, SDValue > >
using	FrameExports = std::vector< std::pair< ConstRef< Inst >, llvm::SDValue > >
	Vector of exported values from the frame.
Protected Member Functions inherited from ISel
	ISel (char &ID, const Target &target, const Prog &prog, llvm::TargetLibraryInfo &libInfo, llvm::CodeGenOpt::Level ol)
	Initialises the instruction selector.
void	Lower (const Inst *inst)
	Lowers an instruction.
virtual bool	Finalize (llvm::MachineFunction &MF)
	Finalize the lowering.
SDValue	LoadReg (Register reg)
	Lovers a register value.
llvm::SDValue	LowerGlobal (const Global &val, Type type)
	Lowers an offset reference to a global.
llvm::SDValue	LowerGlobal (const Global &val, int64_t offset, Type type)
	Lowers a global value.
void	LowerArgs (const CallLowering &lowering)
	Lowers all arguments.
std::pair< llvm::SDValue, llvm::SDValue >	LowerRets (llvm::SDValue chain, const CallLowering &lowering, const ReturnInst *ret, llvm::SmallVectorImpl< SDValue > &ops)
	Lower all return values.
std::pair< llvm::SDValue, llvm::SDValue >	LowerRaises (llvm::SDValue chain, const CallLowering &lowering, const RaiseInst *ret, llvm::SmallVectorImpl< llvm::Register > &regs, llvm::SDValue glue)
	Lower all return values.
void	LowerPad (const CallLowering &lowering, const LandingPadInst *inst)
	Lowers a landing pad.
SDValue	GetPrimitiveExportRoot ()
	Flushes pending exports that are not OCaml values.
SDValue	GetValueExportRoot ()
	Flushes pending exports which are OCaml values.
SDValue	GetExportRoot ()
	Flushes all pending exports.
SDValue	GetExportRoot (const ExportList &exports)
	Export a set of values.
bool	HasPendingExports ()
	Checks if there are any pending exports.
RegParts	ExportValue (SDValue value)
	Copies a value to a vreg to be exported later.
RegParts	AssignVReg (ConstRef< Inst > inst)
	Creates a register for an instruction's result.
SDValue	LowerInlineAsm (unsigned opcode, SDValue chain, const char *code, unsigned flags, llvm::ArrayRef< llvm::Register > inputs, llvm::ArrayRef< llvm::Register > clobbers, llvm::ArrayRef< llvm::Register > outputs, SDValue glue=SDValue())
	Lower an inline asm sequence.
SDValue	LowerImm (const APInt &val, Type type)
	Lowers an immediate to a SDValue.
SDValue	LowerImm (const APFloat &val, Type type)
	Lowers an immediate to a SDValue.
SDValue	LowerConstant (ConstRef< Inst > inst)
	Returns a constant if the instruction introduces one.
SDValue	LowerExpr (const Expr &expr, Type type)
	Lowers an expression value.
SDValue	GetValue (ConstRef< Inst > inst)
	Looks up an existing value.
void	Export (ConstRef< Inst > inst, llvm::SDValue val)
	Exports a value.
llvm::ISD::CondCode	GetCond (Cond cc)
	Converts a condition code.
FrameExports	GetFrameExport (const Inst *frame)
	Get the relevant vars for a GC frame.
llvm::SDValue	LowerGCFrame (llvm::SDValue chain, llvm::SDValue glue, const CallSite *inst)
	Lower a GC frame.
ConstRef< Value >	GetMoveArg (ConstRef< MovInst > inst)
	Follow move arguments to a non-move instruction.
bool	IsExported (ConstRef< Inst > inst)
	Check if the value is exported from its defining block.
MVT	GetPointerType () const
	Return the pointer type.
virtual void	PrepareFunction (const Func &func, llvm::MachineFunction &MF)
	Prepare a function.
void	HandleSuccessorPHI (const Block *block)
	Handle PHI nodes in successor blocks.
void	CodeGenAndEmitDAG ()
	Prepares the dag for instruction selection.
void	DoInstructionSelection ()
	Creates a MachineBasicBlock with MachineInstrs.
void	Error (const Inst *i, const std::string_view &message)
	Report an error at an instruction.
void	Error (const Func *f, const std::string_view &message)
	Report an error in a function.
void	LowerVAStart (const VaStartInst *inst)
	Lowers a vararg frame setup instruction.
void	LowerCall (const CallInst *inst)
	Lowers a call instructions.
void	LowerTailCall (const TailCallInst *inst)
	Lowers a tail call instruction.
void	LowerInvoke (const InvokeInst *inst)
	Lowers an invoke instruction.
void	LowerFrameCall (const FrameCallInst *inst)
	Lowers a frame call instruction.
void	LowerBinary (const Inst *inst, unsigned op)
	Lowers a binary instruction.
void	LowerBinary (const Inst *inst, unsigned sop, unsigned fop)
	Lowers a binary integer or float operation.
void	LowerShift (const Inst *inst, unsigned op)
	Lowers a shift instruction.
void	LowerUnary (const UnaryInst *inst, unsigned opcode)
	Lowers a unary instruction.
void	LowerJUMP_COND (const JumpCondInst *inst)
	Lowers a conditional jump true instruction.
void	LowerJUMP (const JumpInst *inst)
	Lowers a jump instruction.
void	LowerSwitch (const SwitchInst *inst)
	Lowers a switch.
void	LowerLD (const LoadInst *inst)
	Lowers a load.
void	LowerST (const StoreInst *inst)
	Lowers a store.
void	LowerFrame (const FrameInst *inst)
	Lowers a frame instruction.
void	LowerCmp (const CmpInst *inst)
	Lowers a comparison instruction.
void	LowerTrap (const TrapInst *inst)
	Lowers a trap instruction.
void	LowerDebugTrap (const DebugTrapInst *inst)
	Lowers a debug trap instruction.
void	LowerMov (const MovInst *inst)
	Lowers a mov instruction.
void	LowerSExt (const SExtInst *inst)
	Lowers a sign extend instruction.
void	LowerZExt (const ZExtInst *inst)
	Lowers a zero extend instruction.
void	LowerFExt (const FExtInst *inst)
	Lowers a float extend instruction.
void	LowerXExt (const XExtInst *inst)
	Lowers a any extend instruction.
void	LowerTrunc (const TruncInst *inst)
	Lowers a truncate instruction.
void	LowerAlloca (const AllocaInst *inst)
	Lowers an alloca instruction.
void	LowerSelect (const SelectInst *inst)
	Lowers a select instruction.
void	LowerUndef (const UndefInst *inst)
	Lowers an undefined instruction.
void	LowerALUO (const BinaryInst *inst, unsigned op)
	Lowers an overflow check instruction.
void	LowerGet (const GetInst *inst)
	Lowers a fixed register get instruction.
void	LowerBitCast (const BitCastInst *inst)
	Lowers a bit cast instruction.
std::pair< bool, llvm::CallingConv::ID >	GetCallingConv (const Func *caller, const CallSite *call)
	Find the calling convention of a call.
SDValue	LowerCallArguments (SDValue chain, const CallSite *call, CallLowering &ci, llvm::SmallVectorImpl< std::pair< unsigned, SDValue >> &regs)
	Lower the arguments to a call.
std::pair< SDValue, SDValue >	LowerReturns (SDValue chain, SDValue inFlag, const CallSite *call, llvm::SmallVectorImpl< CallLowering::RetLoc > &returns, llvm::SmallVectorImpl< SDValue > &regs, llvm::SmallVectorImpl< std::pair< ConstRef< Inst >, SDValue >> &values)
	Lower values returned from a call.
Protected Attributes inherited from ISel
const Target &	target_
	Reference to the target.
const Prog &	prog_
	Program to lower.
llvm::TargetLibraryInfo &	libInfo_
	Target library info.
llvm::DebugLoc	DL_
	Dummy debug location.
llvm::SDLoc	SDL_
	Dummy SelectionDAG debug location.
llvm::Module *	M_
	Current module.
llvm::Type *	voidTy_
	Void type.
llvm::Type *	i8PtrTy_
	Void pointer type.
llvm::FunctionType *	funcTy_
	Dummy function type.
llvm::CodeGenOpt::Level	ol_
	Chosen optimisation level.
const Func *	func_
	Current function.
llvm::Function *	F_
	Current LLVM function.
llvm::MachineBasicBlock *	MBB_
	Current basic block.
llvm::MachineBasicBlock::iterator	insert_
	Current insertion point.
std::unique_ptr< LiveVariables >	lva_
	Per-function live variable info.
std::unordered_map< ConstRef< Inst >, llvm::SDValue >	values_
	Mapping from nodes to values.
std::unordered_map< ConstRef< Inst >, RegParts >	regs_
	Mapping from nodes to registers.
llvm::DenseMap< unsigned, unsigned >	stackIndices_
	Mapping from stack_object indices to llvm stack objects.
int	frameIndex_
	Frame start index, if necessary.
std::vector< std::pair< RegParts, llvm::SDValue > >	pendingPrimValues_
	Pending primitives to be exported.
std::unordered_map< ConstRef< Inst >, RegParts >	pendingPrimInsts_
	Pending primitive instructions to be exported.
std::unordered_map< ConstRef< Inst >, RegParts >	pendingValueInsts_
	Pending value-producing instructions to be exported.
Protected Attributes inherited from ISelMapping
std::unordered_map< const Func *, llvm::MachineFunction * >	funcs_
	Mapping from functions to MachineFunctions.
std::unordered_map< const Block *, llvm::MachineBasicBlock * >	mbbs_
	Mapping from blocks to machine blocks.
std::unordered_map< const Block *, llvm::BasicBlock * >	bbs_
	Mapping from blocks to basic blocks.
std::unordered_map< const Inst *, llvm::MCSymbol * >	labels_
	Labels of annotated instructions.
std::unordered_map< llvm::MCSymbol *, const CamlFrame * >	frames_
	Mapping from labels to instructions.

Detailed Description

Custom pass to generate MIR from LLIR instead of LLVM IR.

---

The documentation for this class was generated from the following files:

• emitter/riscv/riscvisel.h
• emitter/riscv/riscvisel.cpp
