#include <core/block.h>

Inheritance diagram for Block:

[legend]

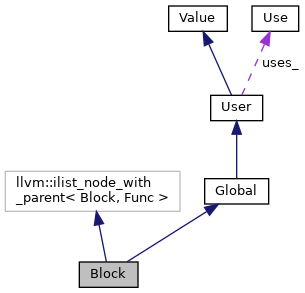

Collaboration diagram for Block:

[legend]

Classes
class	PhiIterator
	Iterator over PHI nodes. More...

class	PredIterator
	Iterator over the predecessors of a block. More...

Public Types
using	InstListType = llvm::ilist< Inst >

using	iterator = InstListType::iterator

using	reverse_iterator = InstListType::reverse_iterator

using	const_iterator = InstListType::const_iterator

using	const_reverse_iterator = InstListType::const_reverse_iterator

template<typename T >
using	iter_fwd = std::iterator< std::forward_iterator_tag, T, ptrdiff_t, T , T >

using	succ_iterator = llvm::SuccIterator< TerminatorInst, Block >

using	const_succ_iterator = llvm::SuccIterator< const TerminatorInst, const Block >

using	pred_iterator = PredIterator< Block, Value::user_iterator >

using	const_pred_iterator = PredIterator< const Block, Value::const_user_iterator >

template<typename It , typename T >
using	facade_fwd = llvm::iterator_facade_base< It, std::forward_iterator_tag, T >

using	phi_iterator = PhiIterator< PhiInst, iterator >

using	const_phi_iterator = PhiIterator< const PhiInst, const_iterator >

Public Types inherited from Global
enum	Kind { EXTERN, FUNC, BLOCK, ATOM }
	Enumeration of global kinds.

Public Types inherited from User
using	op_iterator = Use *

using	const_op_iterator = const Use *

using	op_range = llvm::iterator_range< op_iterator >

using	const_op_range = llvm::iterator_range< const_op_iterator >

using	value_op_range = llvm::iterator_range< value_op_iterator >

using	const_value_op_range = llvm::iterator_range< const_value_op_iterator >

template<typename T >
using	conv_op_range = llvm::iterator_range< conv_op_iterator< T > >

template<typename T >
using	const_conv_op_range = llvm::iterator_range< const_conv_op_iterator< T > >

template<typename T >
using	unref_range = llvm::iterator_range< unref_iterator< T > >

template<typename T >
using	const_unref_range = llvm::iterator_range< const_unref_iterator< T > >

Public Types inherited from Value
enum	Kind { INST, GLOBAL, EXPR, CONST }
	Enumeration of value types.

template<typename T >
using	forward_it = std::iterator< std::forward_iterator_tag, T >

using	use_iterator = use_iterator_impl< Use >

using	const_use_iterator = use_iterator_impl< const Use >

using	user_iterator = user_iterator_impl< User >

using	const_user_iterator = user_iterator_impl< const User >

Public Member Functions
	Block (const std::string_view name, Visibility visibility=Visibility::LOCAL)

	~Block ()

void	removeFromParent () override
	Removes the global from the parent container.

void	eraseFromParent () override
	Removes a block from the parent.

void	AddInst (Inst inst, Inst before=nullptr)
	Adds an instruction to the basic block.

void	AddPhi (PhiInst *phi)
	Adds a PHI instruction to the basic block.

Func *	getParent () const
	Returns a pointer to the parent block.

TerminatorInst *	GetTerminator ()
	Returns the terminator of the block.

const TerminatorInst *	GetTerminator () const

std::optional< llvm::Align >	GetAlignment () const override
	Blocks have no known alignment.

bool	HasAddressTaken () const
	Checks if the address of the block is taken.

bool	IsLandingPad () const
	Checks if the block is an exception landing pad.

bool	IsTrap () const
	Checks if the block is a single trap.

void	insert (Inst *inst, iterator it)
	Add an instruction to the block.

void	insertAfter (Inst *inst, iterator it)
	Add an instruction after another in the block.

void	remove (iterator it)
	Removes an instruction.

void	erase (iterator it)
	Erases an instruction.

void	erase (iterator first, iterator last)
	Erases a range of instructions.

void	clear ()
	Clears all blocks.

bool	empty () const

iterator	begin ()

iterator	end ()

const_iterator	begin () const

const_iterator	end () const

reverse_iterator	rbegin ()

reverse_iterator	rend ()

const_reverse_iterator	rbegin () const

const_reverse_iterator	rend () const

size_t	size () const
	Returns the size of the block.

succ_iterator	succ_begin ()

succ_iterator	succ_end ()

llvm::iterator_range< succ_iterator >	successors ()

const_succ_iterator	succ_begin () const

const_succ_iterator	succ_end () const

llvm::iterator_range< const_succ_iterator >	successors () const

unsigned	succ_size () const

bool	succ_empty () const

bool	pred_empty () const

unsigned	pred_size () const

pred_iterator	pred_begin ()

pred_iterator	pred_end ()

const_pred_iterator	pred_begin () const

const_pred_iterator	pred_end () const

llvm::iterator_range< pred_iterator >	predecessors ()

llvm::iterator_range< const_pred_iterator >	predecessors () const

bool	phi_empty () const

llvm::iterator_range< const_phi_iterator >	phis () const

llvm::iterator_range< phi_iterator >	phis ()

iterator	first_non_phi ()
	Iterator to the first non-phi instruction.

Block *	splitBlock (iterator I)
	Split the block at the given iterator.

void	printAsOperand (llvm::raw_ostream &O, bool PrintType=true) const

Prog *	getProg () override
	Returns the program to which the extern belongs.

void	dump (llvm::raw_ostream &os=llvm::errs()) const
	Dumps the textual representation of the instruction.

Public Member Functions inherited from Global
	Global (Kind kind, const std::string_view name, Visibility visibility=Visibility::LOCAL, unsigned numOps=0)

Kind	GetKind () const
	Returns the kind of the global.

bool	Is (Kind kind) const
	Checks if the global is of a specific kind.

const std::string_view	GetName () const
	Returns the name of the global.

llvm::StringRef	getName () const
	Returns the name of the basic block for LLVM.

void	SetVisibility (Visibility visibility)
	Sets the visibilty of the global.

Visibility	GetVisibility () const
	Returns the visibilty of a global.

bool	IsRoot () const
	Checks if the symbol can be externally referenced.

bool	IsLocal () const
	Checks if the global is hidden in the compilation unit.

bool	IsWeak () const
	Checks if a symbol is weak.

Public Member Functions inherited from User
	User (Kind kind, unsigned numOps)
	Creates a new user.

virtual	~User ()
	Cleans up after the use.

size_t	size () const

op_iterator	op_begin ()

op_iterator	op_end ()

op_range	operands ()

const_op_iterator	op_begin () const

const_op_iterator	op_end () const

const_op_range	operands () const

value_op_iterator	value_op_begin ()

value_op_iterator	value_op_end ()

value_op_range	operand_values ()

const_value_op_iterator	value_op_begin () const

const_value_op_iterator	value_op_end () const

const_value_op_range	operand_values () const

Public Member Functions inherited from Value
	Value (Kind kind)
	Constructs a new value.

	Value (const Value &)=delete
	Do not allow copying.

	Value (Value &&)=delete
	Do not allow moving.

virtual	~Value ()
	Destroy the value.

Kind	GetKind () const
	Returns the value kind.

bool	Is (Kind kind) const
	Checks if the value is of a specific kind.

bool	IsConstant () const
	Checks whether the value is a compile-time constant.

virtual void	replaceAllUsesWith (Value *v)
	Replaces all uses of this value.

virtual void	replaceAllUsesWith (Ref< Value > v)
	Replaces all uses of this with a refernce.

size_t	use_size () const

bool	use_empty () const

use_iterator	use_begin ()

const_use_iterator	use_begin () const

use_iterator	use_end ()

const_use_iterator	use_end () const

llvm::iterator_range< use_iterator >	uses ()

llvm::iterator_range< const_use_iterator >	uses () const

bool	user_empty () const

user_iterator	user_begin ()

const_user_iterator	user_begin () const

user_iterator	user_end ()

const_user_iterator	user_end () const

llvm::iterator_range< user_iterator >	users ()

llvm::iterator_range< const_user_iterator >	users () const

void	operator= (const Value &)=delete
	Do not allow assignments.

void	operator= (Value &&)=delete
	Do not allow move assignments.

Static Public Attributes
static constexpr Global::Kind	kGlobalKind = Global::Kind::BLOCK
	Kind of the global.

Static Public Attributes inherited from Global
static constexpr Value::Kind	kValueKind = Value::Kind::GLOBAL
	Kind of the global.

Friends
struct	llvm::ilist_traits< Inst >

struct	SymbolTableListTraits< Block >

Additional Inherited Members
Protected Member Functions inherited from User
template<int I>
void	Set (Ref< Value > val)
	Setter for an operand.

void	Set (int i, Ref< Value > val)
	Setter for an operand.

template<int I>
Ref< Value >	Get ()
	Accessor for an operand.

Ref< Value >	Get (int i)
	Accessor for an operand.

template<int I>
ConstRef< Value >	Get () const
	Accessor for an operand.

ConstRef< Value >	Get (int i) const
	Accessor for an operand.

void	resizeUses (unsigned n)
	Grows the operand list.

Protected Attributes inherited from User
unsigned	numOps_
	Number of operands.

Use *	uses_
	Head of the use list.

Detailed Description

Basic block.

Constructor & Destructor Documentation

◆ Block()

Block::Block	(	const std::string_view	name,
		Visibility	visibility = `Visibility::LOCAL`
	)

Creates a new basic block.

Parameters

parent	Parent function.
visibility	Visibility attribute of the global symbol.

◆ ~Block()

Block::~Block ( )

Erases a basic block.

The documentation for this class was generated from the following files:

core/block.h
core/block.cpp
