#include <core/insts/phi.h>

Inheritance diagram for PhiInst:

[legend]

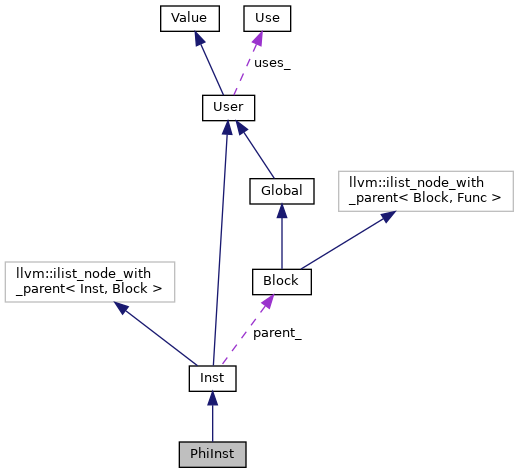

Collaboration diagram for PhiInst:

[legend]

Public Member Functions
	PhiInst (Type type, AnnotSet &&annot={})

	PhiInst (Type type, const AnnotSet &annot)

unsigned	GetNumRets () const override
	Returns the number of return values.

Type	GetType (unsigned i) const override
	Returns the type of the ith return value.

void	Add (Block *block, Ref< Inst > value)
	Adds an incoming value.

unsigned	GetNumIncoming () const
	Returns the number of predecessors.

void	SetBlock (unsigned i, Block *block)
	Updates the nth block.

const Block *	GetBlock (unsigned i) const
	Returns the nth block.

Block *	GetBlock (unsigned i)
	Returns the nth block.

void	SetValue (unsigned i, Ref< Inst > value)
	Sets the value attached to a block.

ConstRef< Inst >	GetValue (unsigned i) const
	Returns the nth value.

Ref< Inst >	GetValue (unsigned i)
	Returns the nth value.

Ref< Inst >	GetValue (const Block *block)
	Returns an operand for a block.

ConstRef< Inst >	GetValue (const Block *block) const
	Returns an operand for a block.

void	Remove (const Block *block)
	Removes an incoming value.

bool	HasValue (const Block *block) const
	Checks if the PHI has a value for a block.

Type	GetType () const
	Returns the immediate type.

bool	HasSideEffects () const override
	This instruction has no side effects.

bool	IsConstant () const override
	Instruction is not constant.

bool	IsReturn () const override
	Instruction does not return.

Public Member Functions inherited from Inst
virtual	~Inst ()
	Destroys an instruction.

unsigned	GetOrder () const
	Returns a unique, stable identifier for the instruction.

void	removeFromParent ()
	Removes an instruction from the parent.

void	eraseFromParent ()
	Removes an instruction from the parent and deletes it.

Kind	GetKind () const
	Returns the instruction kind.

bool	Is (Kind kind) const
	Checks if the instruction is of a specific kind.

Block *	getParent () const
	Returns the parent node.

bool	IsVoid () const
	Checks if the instruction is void.

virtual bool	IsTerminator () const
	Checks if the instruction is a terminator.

template<typename T >
bool	HasAnnot () const
	Checks if a flag is set.

template<typename T >
bool	ClearAnnot ()
	Removes an annotation.

template<typename T >
const T *	GetAnnot () const
	Returns an annotation.

template<typename T , typename... Args>
bool	SetAnnot (Args &&... args)
	Sets an annotation.

bool	AddAnnot (const Annot &annot)
	Adds an annotation.

const AnnotSet &	GetAnnots () const
	Returns the instruction's annotation.

size_t	annot_size () const
	Returns the number of annotations.

bool	annot_empty () const
	Checks if any flags are set.

llvm::iterator_range< AnnotSet::const_iterator >	annots () const
	Iterator over annotations.

Ref< Inst >	GetSubValue (unsigned i)
	Returns the ith sub-value.

ConstRef< Inst >	GetSubValue (unsigned i) const
	Returns the ith sub-value.

void	replaceAllUsesWith (Value *v) override
	Replaces all uses of this value.

void	replaceAllUsesWith (llvm::ArrayRef< Ref< Inst >> v)
	Replaces all uses of a multi-type value.

template<typename T >
std::enable_if< std::is_base_of< Inst, T >::value >::type	replaceAllUsesWith (llvm::ArrayRef< Ref< T >> insts)
	Replaces all uses of a multi-type value.

void	dump (llvm::raw_ostream &os=llvm::errs()) const
	Dumps the textual representation of the instruction.

Public Member Functions inherited from User
	User (Kind kind, unsigned numOps)
	Creates a new user.

virtual	~User ()
	Cleans up after the use.

size_t	size () const

op_iterator	op_begin ()

op_iterator	op_end ()

op_range	operands ()

const_op_iterator	op_begin () const

const_op_iterator	op_end () const

const_op_range	operands () const

value_op_iterator	value_op_begin ()

value_op_iterator	value_op_end ()

value_op_range	operand_values ()

const_value_op_iterator	value_op_begin () const

const_value_op_iterator	value_op_end () const

const_value_op_range	operand_values () const

Public Member Functions inherited from Value
	Value (Kind kind)
	Constructs a new value.

	Value (const Value &)=delete
	Do not allow copying.

	Value (Value &&)=delete
	Do not allow moving.

virtual	~Value ()
	Destroy the value.

Kind	GetKind () const
	Returns the value kind.

bool	Is (Kind kind) const
	Checks if the value is of a specific kind.

bool	IsConstant () const
	Checks whether the value is a compile-time constant.

virtual void	replaceAllUsesWith (Ref< Value > v)
	Replaces all uses of this with a refernce.

size_t	use_size () const

bool	use_empty () const

use_iterator	use_begin ()

const_use_iterator	use_begin () const

use_iterator	use_end ()

const_use_iterator	use_end () const

llvm::iterator_range< use_iterator >	uses ()

llvm::iterator_range< const_use_iterator >	uses () const

bool	user_empty () const

user_iterator	user_begin ()

const_user_iterator	user_begin () const

user_iterator	user_end ()

const_user_iterator	user_end () const

llvm::iterator_range< user_iterator >	users ()

llvm::iterator_range< const_user_iterator >	users () const

void	operator= (const Value &)=delete
	Do not allow assignments.

void	operator= (Value &&)=delete
	Do not allow move assignments.

Static Public Attributes
static constexpr Inst::Kind	kInstKind = Inst::Kind::PHI
	Kind of the instruction.

Static Public Attributes inherited from Inst
static constexpr Value::Kind	kValueKind = Value::Kind::INST
	Kind of the instruction.

Additional Inherited Members
Public Types inherited from Inst
enum	Kind : uint8_t { GET_INST }

Public Types inherited from User
using	op_iterator = Use *

using	const_op_iterator = const Use *

using	op_range = llvm::iterator_range< op_iterator >

using	const_op_range = llvm::iterator_range< const_op_iterator >

using	value_op_range = llvm::iterator_range< value_op_iterator >

using	const_value_op_range = llvm::iterator_range< const_value_op_iterator >

template<typename T >
using	conv_op_range = llvm::iterator_range< conv_op_iterator< T > >

template<typename T >
using	const_conv_op_range = llvm::iterator_range< const_conv_op_iterator< T > >

template<typename T >
using	unref_range = llvm::iterator_range< unref_iterator< T > >

template<typename T >
using	const_unref_range = llvm::iterator_range< const_unref_iterator< T > >

Public Types inherited from Value
enum	Kind { INST, GLOBAL, EXPR, CONST }
	Enumeration of value types.

template<typename T >
using	forward_it = std::iterator< std::forward_iterator_tag, T >

using	use_iterator = use_iterator_impl< Use >

using	const_use_iterator = use_iterator_impl< const Use >

using	user_iterator = user_iterator_impl< User >

using	const_user_iterator = user_iterator_impl< const User >

Protected Member Functions inherited from Inst
	Inst (Kind kind, unsigned numOps, AnnotSet &&annot)
	Constructs an instruction of a given type.

	Inst (Kind kind, unsigned numOps, const AnnotSet &annot)
	Constructs an instruction of a given type.

Protected Member Functions inherited from User
template<int I>
void	Set (Ref< Value > val)
	Setter for an operand.

void	Set (int i, Ref< Value > val)
	Setter for an operand.

template<int I>
Ref< Value >	Get ()
	Accessor for an operand.

Ref< Value >	Get (int i)
	Accessor for an operand.

template<int I>
ConstRef< Value >	Get () const
	Accessor for an operand.

ConstRef< Value >	Get (int i) const
	Accessor for an operand.

void	resizeUses (unsigned n)
	Grows the operand list.

Protected Attributes inherited from Inst
Block *	parent_
	Parent node.

unsigned	order_
	Unique number for stable ordering.

Protected Attributes inherited from User
unsigned	numOps_
	Number of operands.

Use *	uses_
	Head of the use list.

Detailed Description

PHI instruction.

The documentation for this class was generated from the following files:

core/insts/phi.h
core/insts/phi.cpp
